Elcomsoft Forensic Disk Decryptor
A Fully Integrated Solution for Accessing Encrypted Volumes
Elcomsoft Forensic Disk Decryptor offers all available methods for gaining access to information stored in encrypted BitLocker, FileVault 2, PGP, TrueCrypt and VeraCrypt disks and volumes. The toolkit allows using the volume's plain-text password, escrow or recovery keys, as well as the binary keys extracted from the computer’s memory image or hibernation file. FileVault 2 recovery keys can be extracted from iCloud with Elcomsoft Phone Breaker, while BitLocker recovery keys are available in Active Directory or in the user’s Microsoft Account.
If neither the encryption key nor the recovery key can be extracted, EFDD can extract meta data from the encrypted container to let Elcomsoft Distributed Password Recovery do its job.
Features and Benefits
Access Information Stored in Popular Crypto Containers
ElcomSoft offers investigators a fast, easy way to access encrypted information stored in crypto containers created by BitLocker, FileVault 2, PGP, TrueCrypt and VeraCrypt.

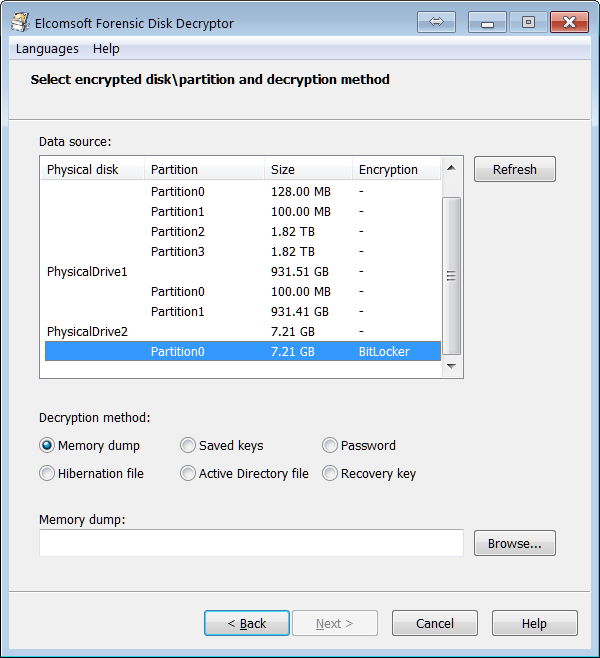

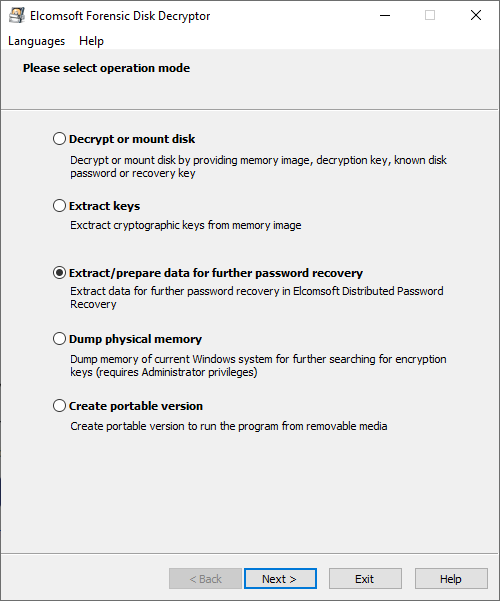

Full Decryption, Instant Mount or Attack

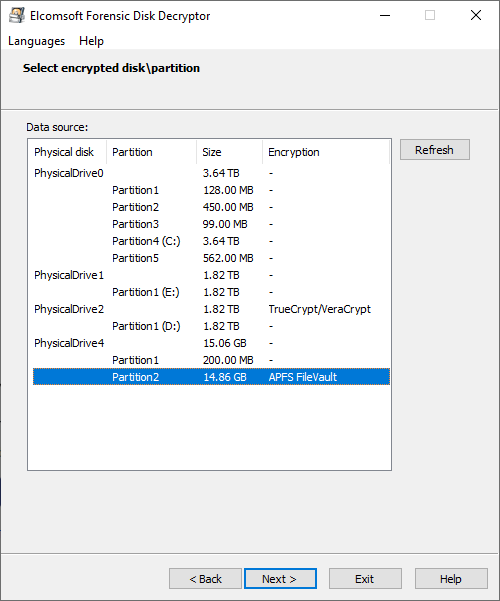

With fully automatic detection of encrypted volumes and encryption settings, experts will only need to provide path to the encrypted container or disk image. Elcomsoft Forensic Disk Decryptor will automatically search for, identify and display encrypted volumes and details of their corresponding encryption settings.
Access is provided by either decrypting the entire content of an encrypted volume or by mounting the volume as a drive letter in unlocked, unencrypted mode. Both operations can be done with volumes as attached disks (physical or logical) or raw images; for FileVault 2, PGP and BitLocker, decryption and mounting can be performed using recovery key (if available).
Elcomsoft Forensic Disk Decryptor can automatically decrypt the entire content of the encrypted container, providing investigators with full, unrestricted access to all information stored on encrypted volumes
Real-Time Access to Encrypted Information
In the real-time mode, Elcomsoft Forensic Disk Decryptor mounts the encrypted volume as a new drive letter on the investigator’s PC. In this mode, forensic specialists enjoy fast, real-time access to protected information. Information read from mounted disks and volumes is decrypted on-the-fly in real time.
No Decryption Key and No Recovery Key?
If neither the decryption key nor the recovery key is available, Elcomsoft Forensic Disk Decryptor will extract metadata necessary to brute-force the password with Elcomsoft Distributed Password Recovery.
Elcomsoft Distributed Password Recovery can attack plain-text passwords protecting the encrypted containers with a range of advanced attacks including dictionary, mask and permutation attacks in addition to brute-force. (Note: VeraCrypt is currently not supported.)

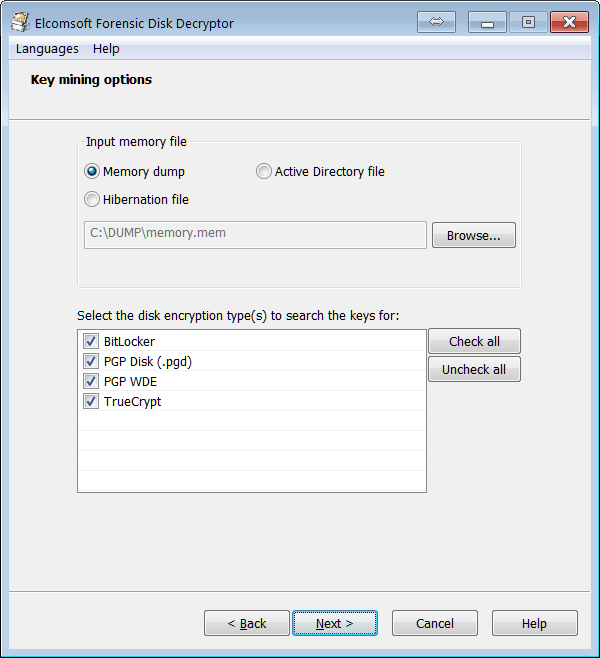

Sources of Encryption Keys

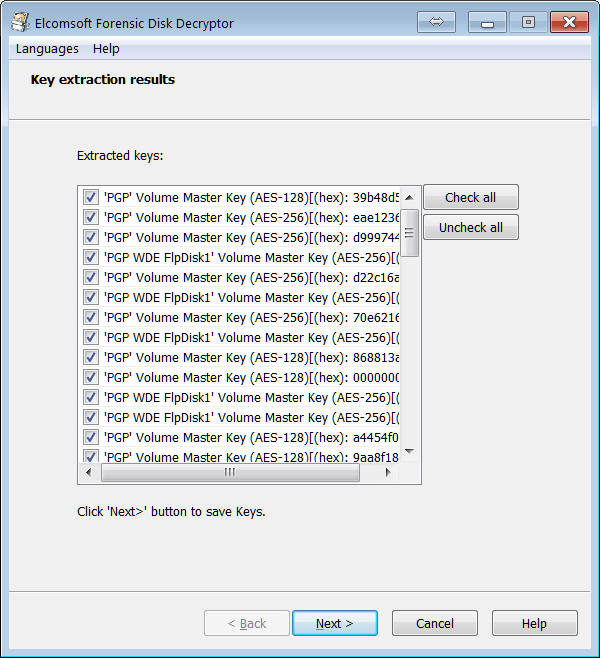

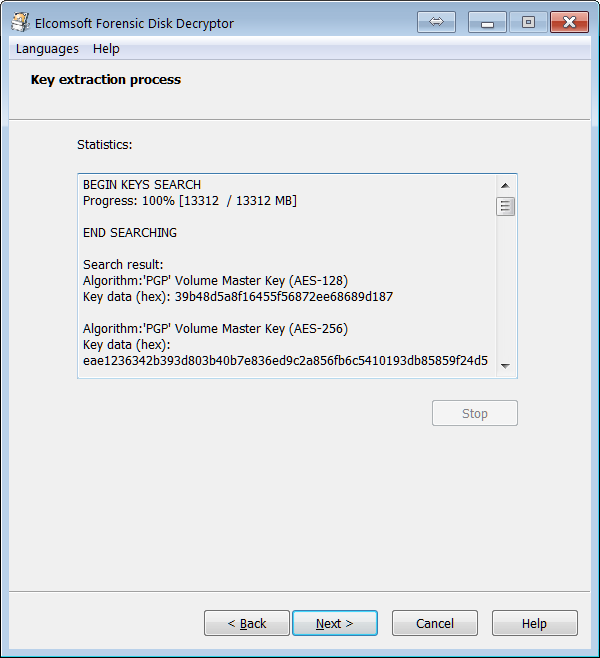

Elcomsoft Forensic Disk Decryptor needs the original encryption keys in order to access protected information stored in crypto containers. The encryption keys can be extracted from hibernation files or memory dump files acquired while the encrypted volume was mounted. There are three ways available to acquire the original encryption keys:
FileVault 2, PGP and BitLocker volumes can be decrypted or mounted by using the escrow key (Recovery Key).
Acquiring Encryption Keys
There are at least three different methods for acquiring the decryption keys. The choice of one of the three methods depends on the running state of the PC being analyzed. It also depends on whether or not installation of a forensic tool is possible on a PC under investigation.
If the PC being investigated is turned off, the encryption keys may be retrieved from the hibernation file. The encrypted volume must be mounted before the computer went to sleep. If the volume is dismounted before hibernation, the encryption keys may not be derived from the hibernation file.
If the PC is turned on, a memory dump can be captured with a built-in memory imaging tool if installing such a tool is permitted (e.g. the PC is unlocked and the currently logged-in account has administrative privileges). The encrypted volume must be mounted at the time of acquisition.
Finally, if the PC being investigated is turned on but installing forensic tools is not possible (e.g. the PC is locked or logged-in account lacks administrative privileges), a DMA attack via a FireWire port can be performed in order to obtain a memory dump. This attack requires the use of a free third-party tool (such as Inception: http://www.breaknenter.org/projects/inception/), and offers near 100% results due to the implementation of the FireWire protocol that enables direct memory access. Both the target PC and the computer used for acquisition must have FireWire (IEEE 1394) ports.
Once the original encryption keys are acquired, Elcomsoft Forensic Disk Decryptor stores the keys for future access, and offers an option to either decrypt the entire content of encrypted container or mount the protected disk as another drive letter for real-time access.

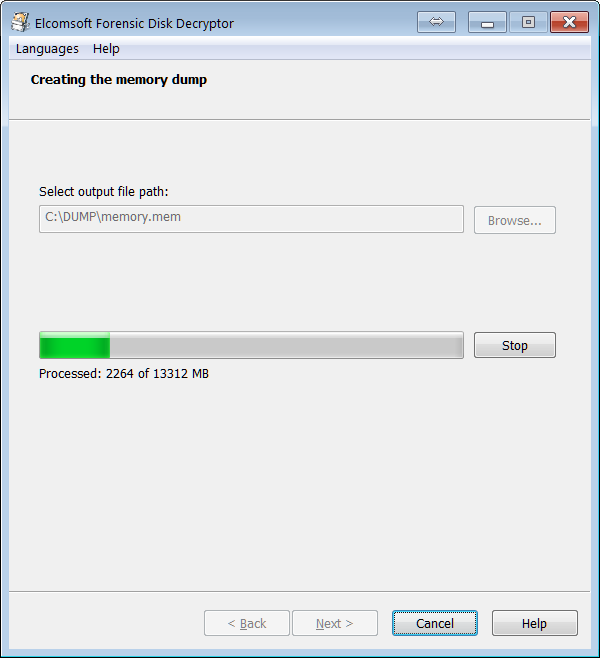

Built-In Memory Imaging Tool
A forensic-grade memory imaging tool is included with Elcomsoft Forensic Disk Decryptor. The tool uses zero-level access to computer’s volatile memory in order to create the most complete memory image. The supplied RAM imaging tool operates through a custom kernel-level driver. The driver is digitally signed with a Microsoft signature, making it fully compatible with all 32-bit and 64-bit versions of Windows from
Supported Disk Encryption Tools
Elcomsoft Forensic Disk Decryptor works with encrypted volumes created by current versions of BitLocker, FileVault 2, PGP and TrueCrypt, including removable and flash storage media encrypted with BitLocker To Go. Supports PGP encrypted containers and full disk encryption, TrueCrypt system and hidden disks.
Zamów licencję do programu EFDD Pobierz bezpłatną testową wersję do EFDD Current version: 2.10.567 (16 Aug, 2018)
The product can be uninstalled through Control Panel ‘Programs and features’, or using ‘Unistall’ program in Start menu. Standard Windows Installer service is being used.
